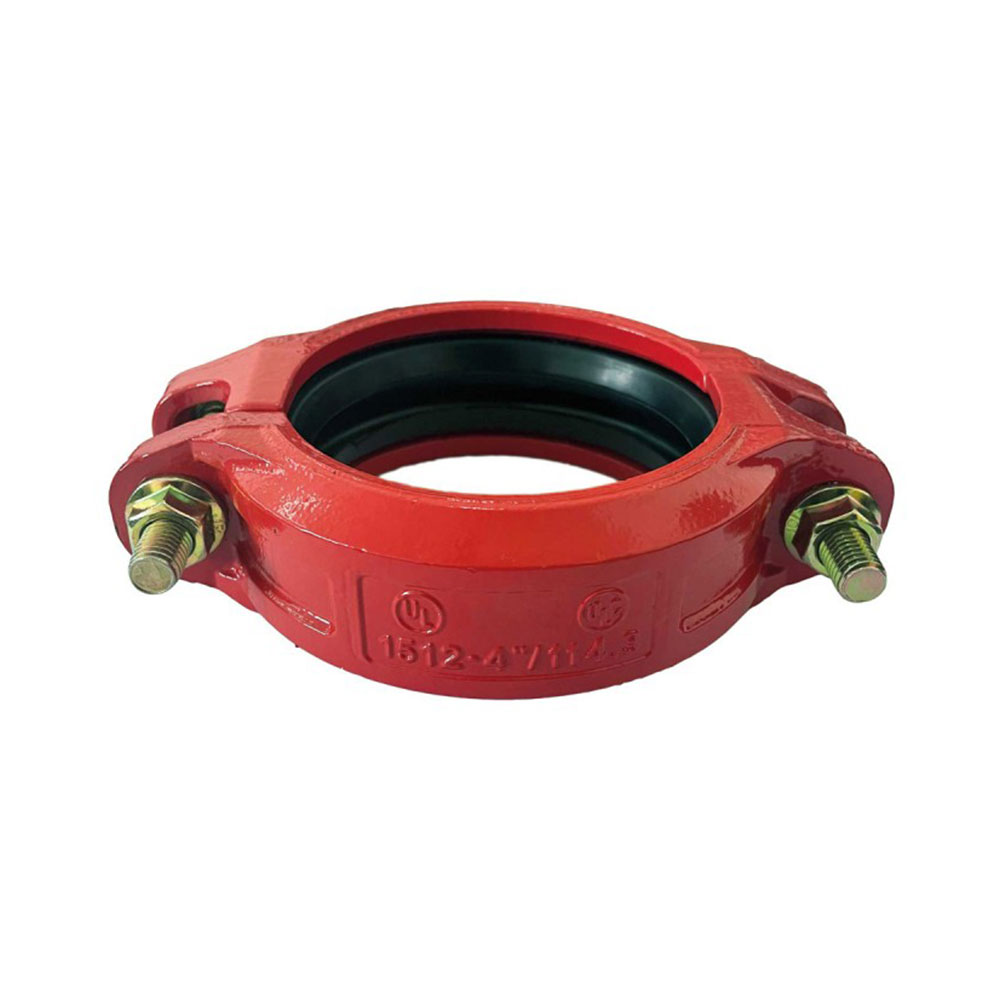

Angle-pad couplings GKSH provide a full rigid connection of grooved pipes and/or grooved fittings. The coupling has been designed to achieve angular and axial stiffness by firmly clamping in the groove base. Small internal dents give an anti-torsional resistance and the angled bolt-pads guarantee rigidity under all pipe and groove conditions.

Available sizes: 1 – 8 inch
Working pressure: 232 PSI for VdS / 300 PSI for LPCD / 450 PSI for UL
UL approved / EAC certified / VdS certified / LPCB certified
Coating: red painted / galvanised
The following sizes are also available on request, directly from factory: 73mm / 141,3mm / 165,1mm.
