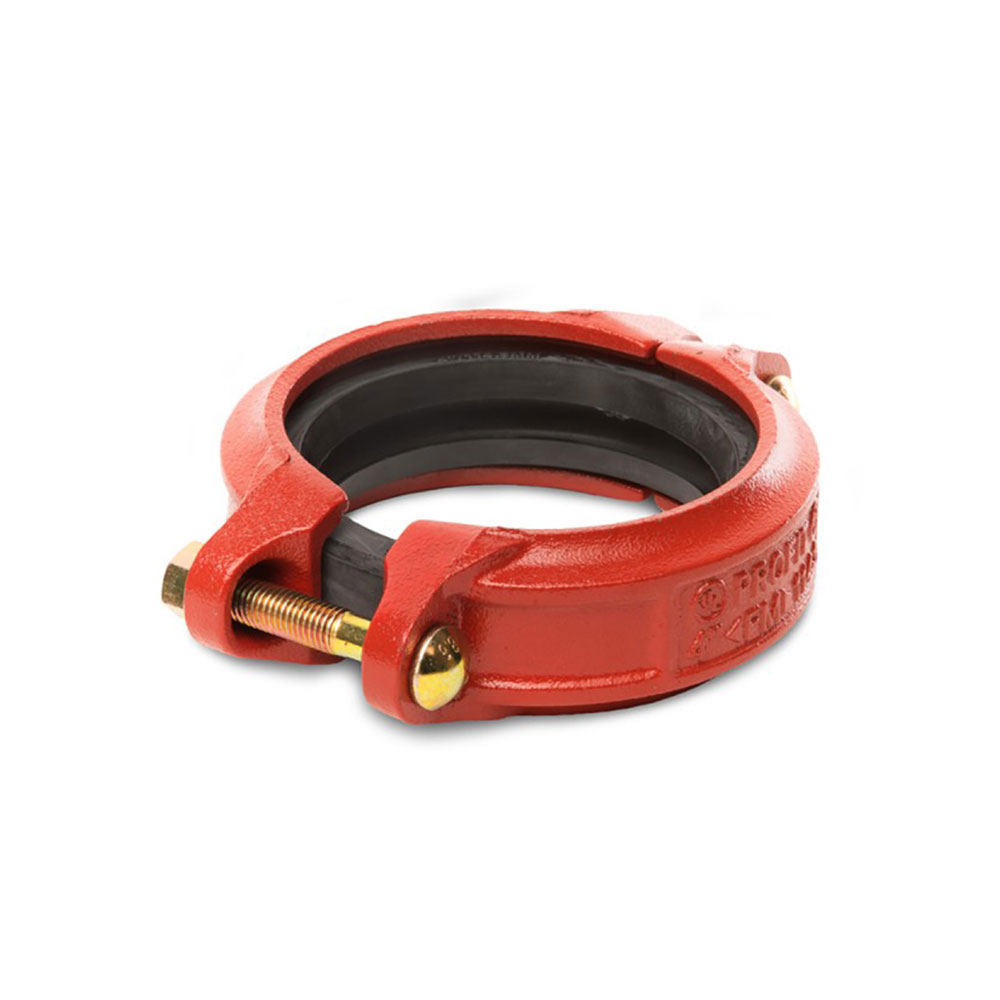

Flexible couplings GKF are designed to allow axial displacement, rotation and some angular movement. The coupling can accommodate angular misalignments up to a few degrees. It can also accommodate parallel misalignment and/or thermal deformation when using two couplings with an intermediate pipe.

Available sizes: 1 – 24 inch
Working pressure: 300 PSI
CNBOP certified / UL certified / FM approved / EAC certified

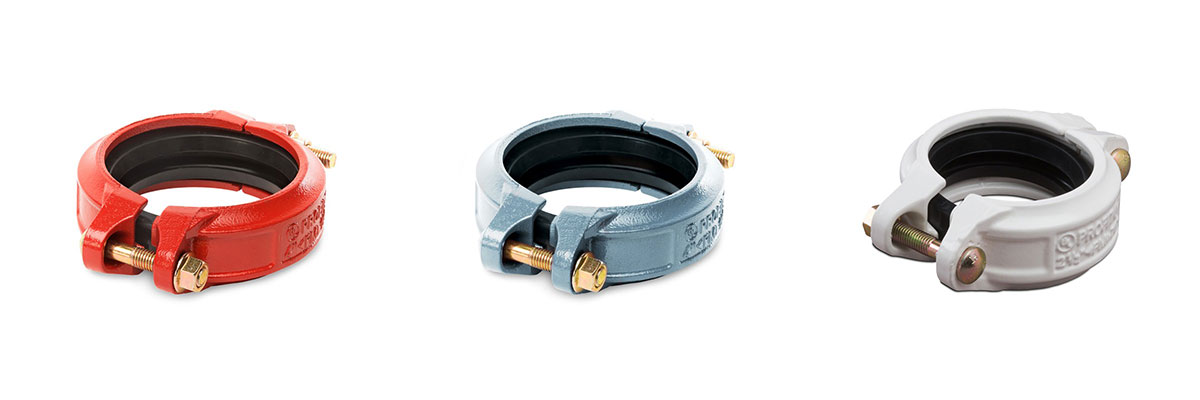

Coating: red painted / galvanized
Absorb misalignments, compensate movements
The following sizes are also available on request, in container: 73mm / 141,3mm / 165,1mm / 216mm / 267mm / 318mm / 480mm.
