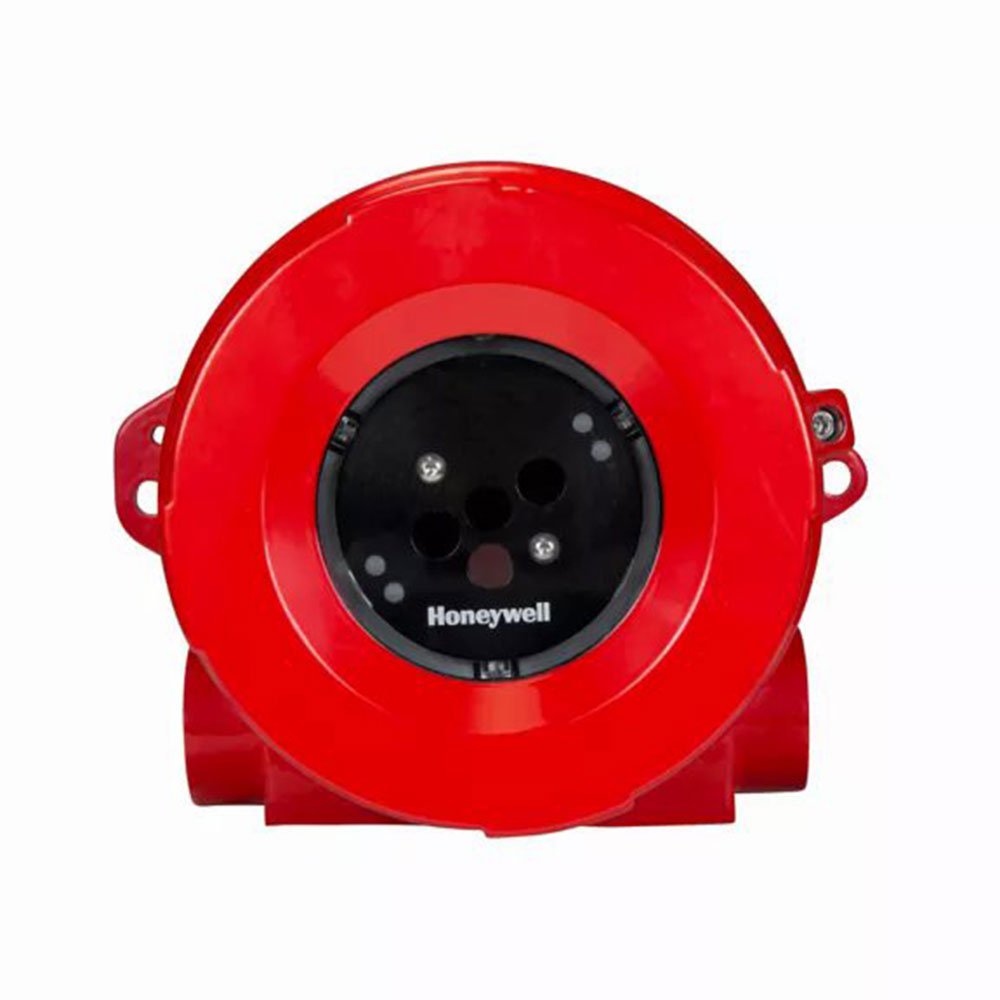

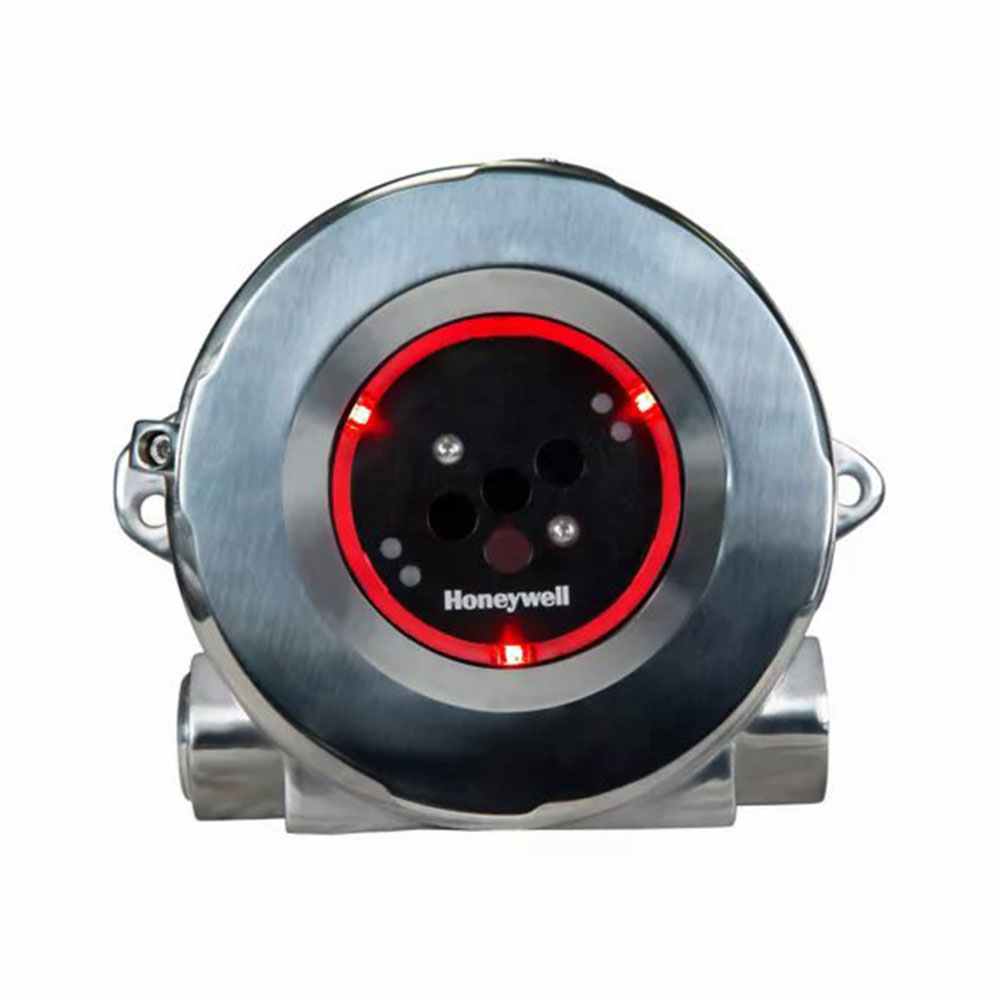

Honeywell’s FS24X Plus flame detector responds to hydrocarbon and hydrogen fires in a solid field of view providing fast
and reliable protection against a wide range of fires. Enhance your overall fire and gas safety by deploying reliable flame
detection that can see through rain, fog and smoke better than other technologies. Designed for demanding industrial
applications, the FS24X Plus helps businesses protect people, plants, and processes should a detectable fire occur.
• Reliable flame detection
Rapid detection of a wide range of hydrocarbon and hydrogen fires with advanced
diagnostics including window clarity and performance.
• Maintains coverage while operating in challenging environments
The use of solid state, wide band sensors means that operation can continue in poor visibility.
• At-a-glance instrument status
FSX24 Plus has a high visibility LED Halo ring that can be seen from a distance to show instrument status.
• Simplified installation using lightweight graduated mount
FS24X Plus includes the SM4 mount as standard, which enables easy mechanical
installation. A marine version mount (SM4-M) is also available.
• Simplified Maintenance
FS24X Plus is supported by a PC App (Flame Manager) and HART® for set-up. Flame Manager includes post event analysis
with Honeywell’s powerful FirePic™ tool. The internal opto-electronics module can be quickly swapped in the field if needed.
• Global hazardous area and performance approvals
ATEX, IECEx, cULus; cFMus; INMETRO, CCC; Ex d; Zone 1; ClassII/III, SIL2, FM3260, EN54-10
• Marine Certifications
ABS, Lloyds, BV, DNV
