Designed with surface mounting Technologies to detect smoke through infrared beams in places that have high and wide areas (warehouse, malls, etc.)

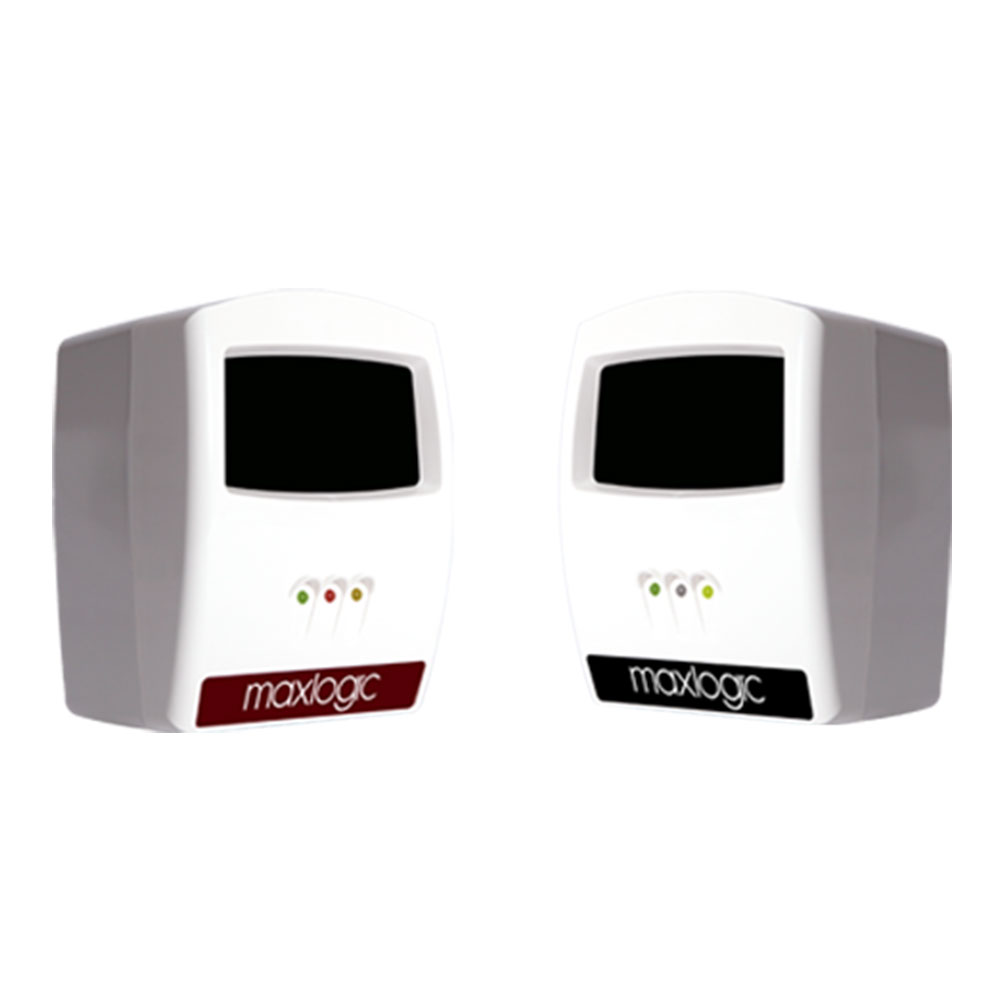

Maxlogic beam type smoke detector consists of 2 parts; receiver and transmitter. They should be installed as facing each other between the distance of 5-100m.

Reflective beam type smoke detector consists 2 parts as a receiver/transmitter unit and reflector. Unit and reflector should be mounted as facing each other, distance is 5-35 meters with 1 reflector and 5-50 meters with using 4 reflectors.

Detectors detect the light obstruction percentage caused by the smoke created by fire.
