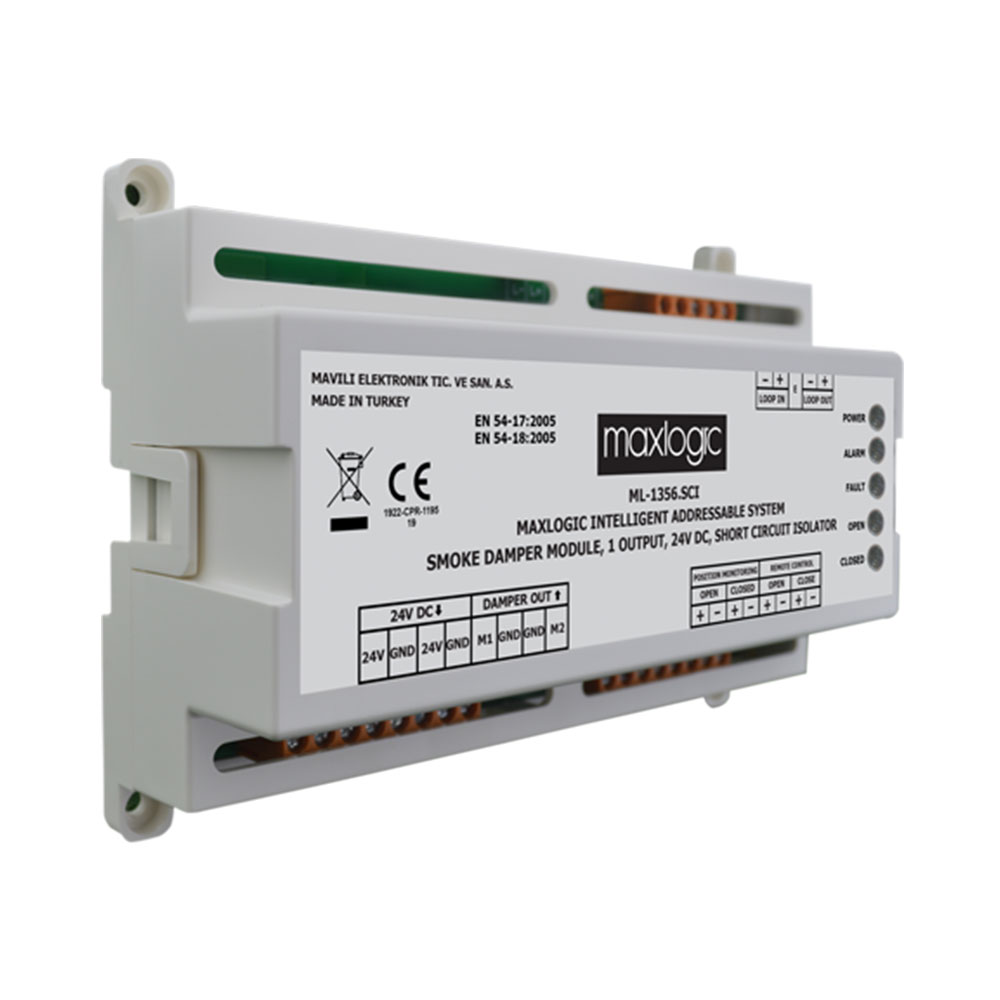

Developed by Mavili Electronics, Smoke Damper Module provides optimum and integrated operation of ventilation systems and fire alarm systems. Maxlogic Smoke Damper Module eliminates the need to manage a smoke damper with multiple relays and switch monitoring modules. Maxlogic Smoke Damper Module can perform multiple tasks with a single address in intelligent addressable fire alarm systems.

 Comply to EN 54-18, models with short circuit isolators comply with EN 54-17 standards.

 220V AC, 24V DC and 24V AC operating voltage options to suitable for all smoke dampers

 On / Off buttons for manually opening and closing the damper, On / Off inputs for switching on and off with remote control

 Open / Short circuit monitoring of damper remote control inputs

 Damper Fault shows when opening the damper module cover as designed

 Damper output line, remote control input, position monitoring input, detection of open / short circuit faults

 Open, Closed and Damper Fault locations of the dampers can be seen from the panel event logs and the screen of the panel

 Damper opening and closing times can be set to 30, 60, 120, 240 seconds, for Position Monitoring inputs

 LEDs that give the operating information of the module: Green LED for power, Yellow LED for fault, Red LED for alarm, green LED lighting up continuously when damper is open or close (green led flashing when damper is opened/closed)
