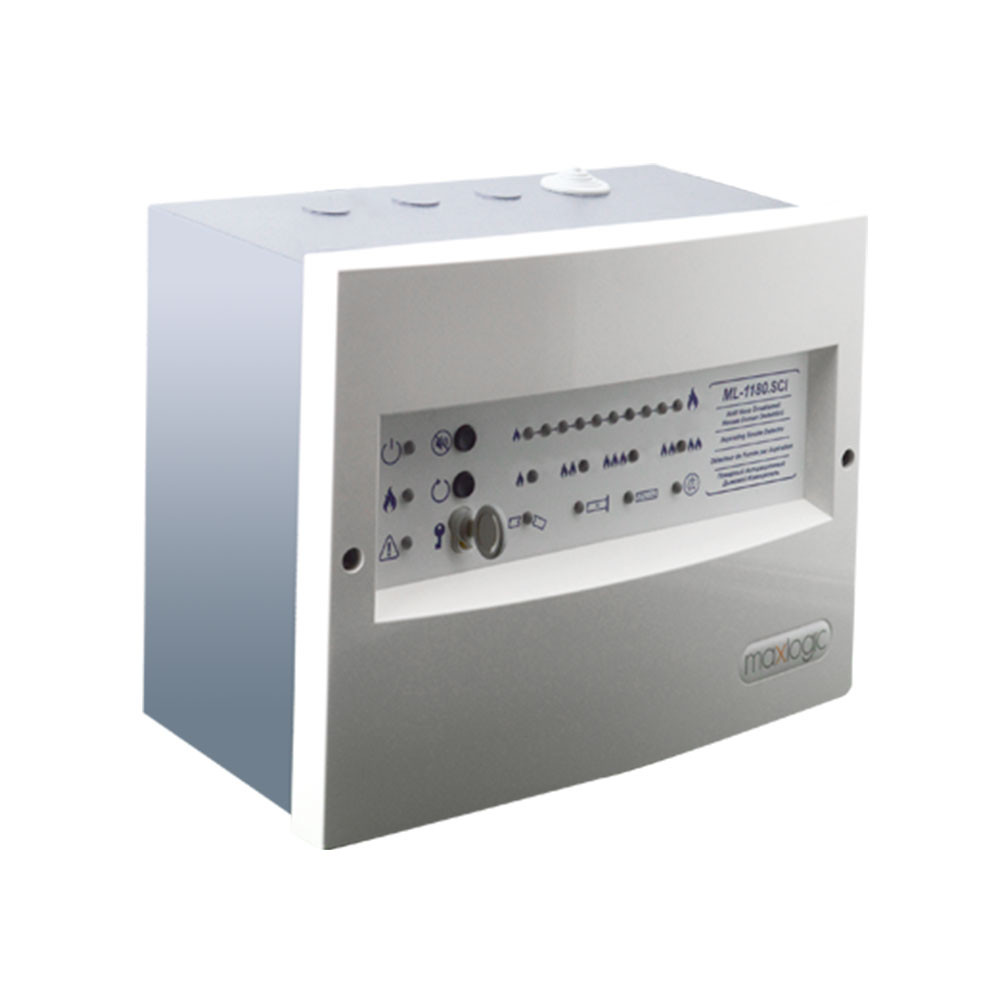

It is designed for the areas where detection of smoke should be extremely sensitive in air ducts. It has suitable options in addressable and conventional systems types according to usage area.

 Mathematical modelling technology

 Short circuit isolator option

 Compatible with EN 54-20 and EN 54-17 standarts

 Ability to work Class A, Class B and Class C sensitivity

Wide detection range: 0,005% – 20% (obs/m)

 High sensitivity resolution: 0.0001% (obs/m)

 Ability to separate dust and smoke

 Ability to work Single, U-Type, 2U-Type, H-Type piping system

 Ability to give alarm with 4 Alarm levels: Warning, Pre Alarm, Fire 1 and Fire 2

 Adjustable fan speeds (1-10 levels)

 4 Alarm output relay (100mA @30V), 2 Fault Output relay (100mA @30V)

 Operating status control via LED indicators

 Remote control function: Silence, Fault, Reset, Alarm

 IP30 protection level

 Programming over USB-PC
