HD deluge valve is a quick opening, differential diaphragm type valve. Deluge valve is used to control water flow in Deluge, Pre-Action as well as Foam systems. The valve is held closed by system water pressure trapped in the priming chamber thus keeping the outlet chamber and system piping dry. In fire conditions, when the releasing system operates, pressure is released from the priming chamber, resulting in opening of the deluge valve. HD deluge Valve is UL Listed.
Description

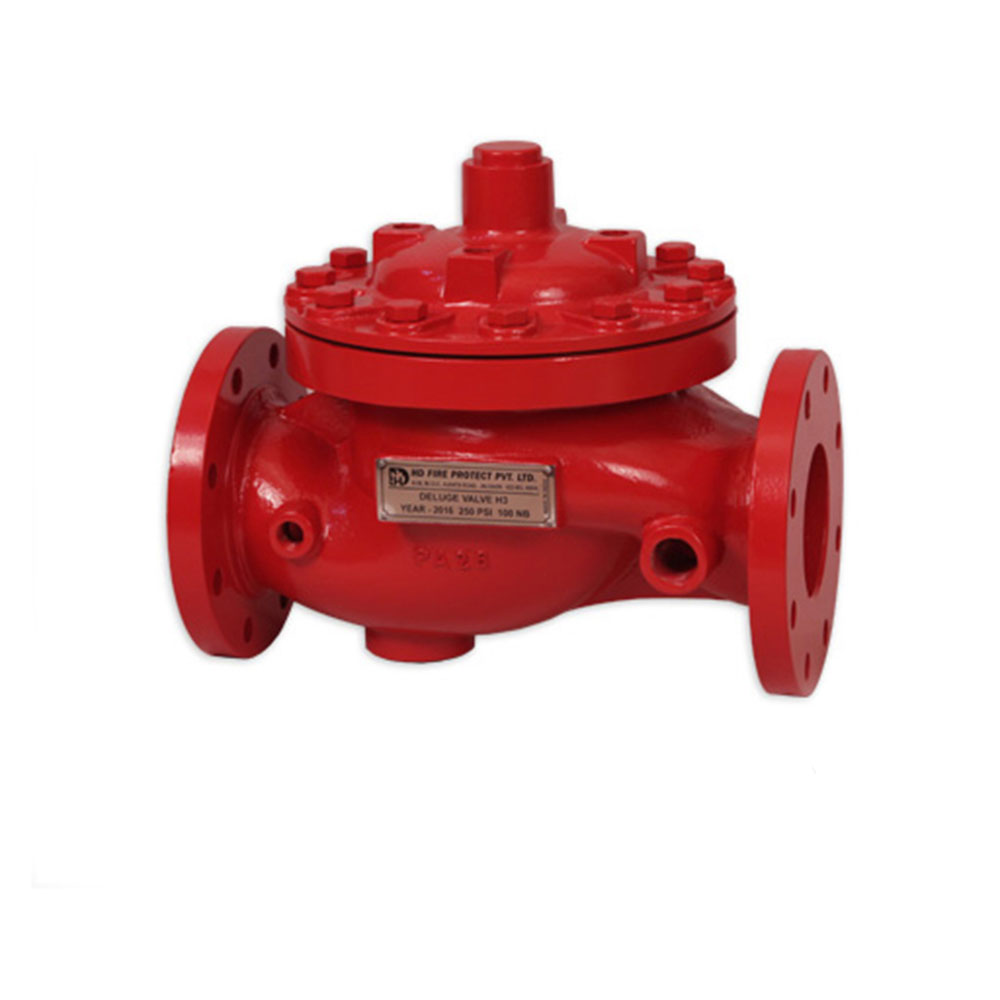

Deluge Valve Model H3
Fast application of water in spray, pre-action and foam system
Ductile Iron ASTM A536 construction
Size: 50, 80, 100, 150 & 200 mm (2", 3", 4", 6" & 8")
Maximum service pressure 17.5 bar (250 PSI)
Horizontal or Vertical mounting
Flanged connection dimensions to ANSI B 16.5
No latch, no piston, no hinges
Simple yet rugged
Diaphragm operated with rubber to metal drip-tight positive sealing
Auto-reset type
Service without removal from line
Easily trimmed for actuation by manual, remote solenoid valve & with wet or dry pilot
Internal and external surfaces epoxy coated for extra protection
UL Listed
