Fire fighting pumping system with advanced design.
NFPA-20 design

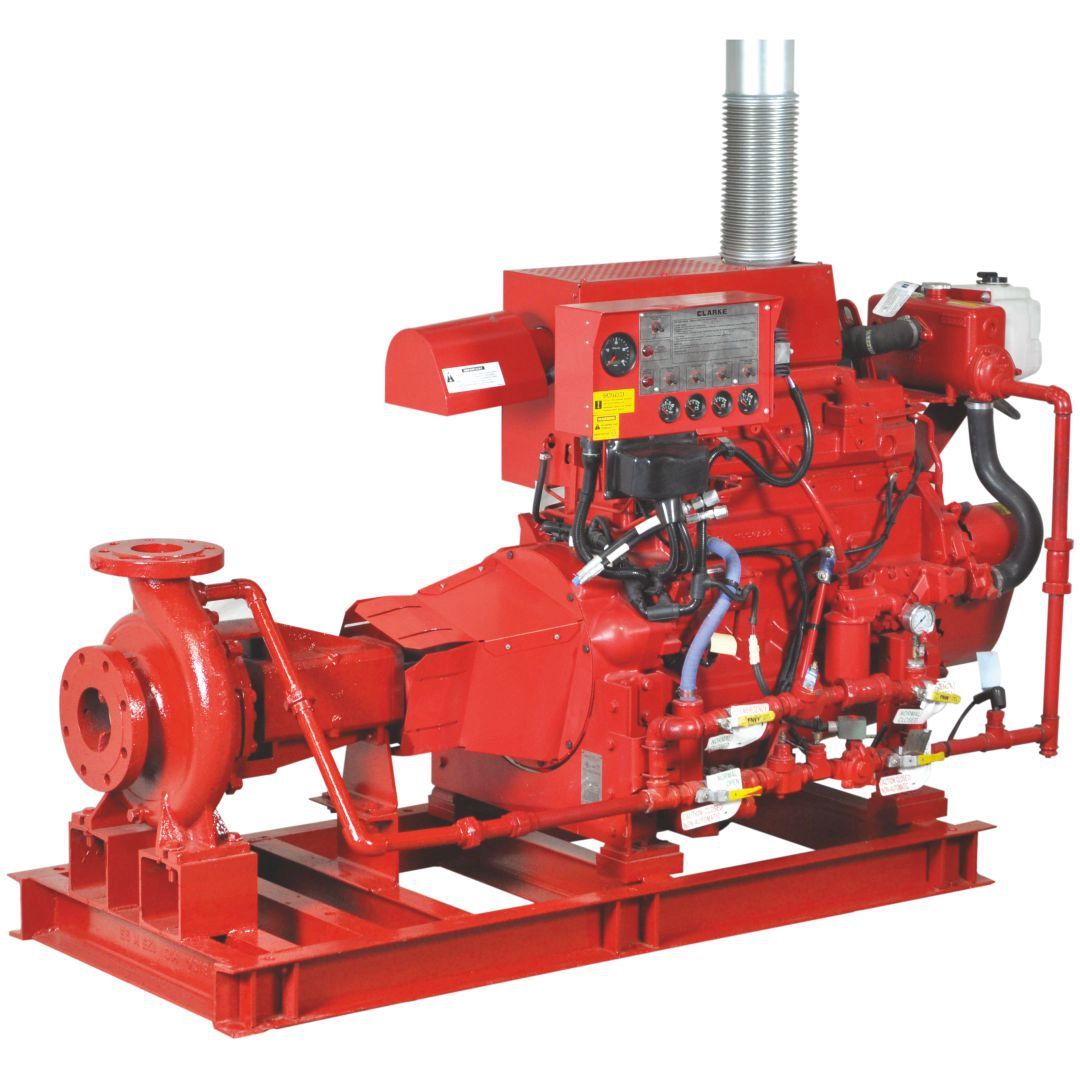

Compressed diesel engine pump package
Uneven construction
More affordable than Horizontal Split Case Diesel Fire Pump Packages
Pull-back design that simplifies inspection and maintenance without disturbing pipe work
Pump impellers are dynamically balanced to ISO 1940-1 grade 6.3
Efficient operation
Lower initial cost
Reduce installation time and cost
Easy access to all parts of the work
Ease of maintenance
Single source responsibility.

VARIETY & RANGE

Flow range: 50 Hz. : 50 to 1000 USGPM
60 Hz. : 100 to 1250 USGPM

Head range: 50 Hz. : 78 to 203 PSI
60 Hz. : 76 to 299 PSI

Rating: Up to 200 hp

Rated speed: 50 Hz. : 2900-3000 rpm
60 Hz. : 3550 rpm
